Non Wi-Fi controller - V1.1
Non Wi-Fi controller - V1.1
Couldn't load pickup availability
Introducing our controllers with industry leading interactive technology putting the power in your hands!
Choose to optimise your PV generation, or for households without PV, set the unit to operate on the cheapest tariffs to ensure the household energy budget is controlled. The single shot boost feature guarantees that no matter what option is chosen, you will never be without hot water. Optional upgrade to a Wi-Fi Controller!

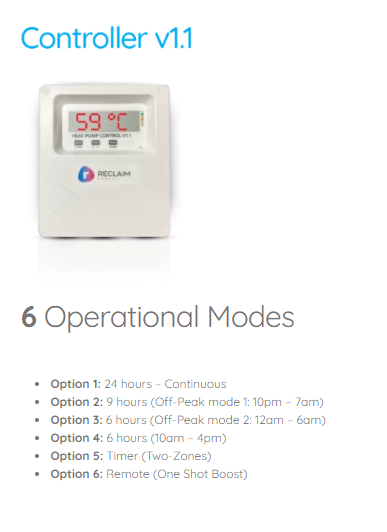

Controller v1.1
6 Operational Modes
- Option 1: 24 hours – Continuous
- Option 2: 9 hours (Off-Peak mode 1: 10pm – 7am)
- Option 3: 6 hours (Off-Peak mode 2: 12am – 6am)
- Option 4: 6 hours (10am – 4pm)
- Option 5: Timer (Two-Zones)
- Option 6: Remote (One Shot Boost)
In all options, the heat pump turn-on is based on 59°C temperature on the tank thermistor for the first cycle of day (i.e. if temperature less than 59°C, turn on the heat pump to reach 59°C- to meet the legionella requirement daily) and the second cycle turn on temperature is 37°C. In all options, the heat pump can run less or more than the operation window when/if the set point temperature of 59°C is reached.
